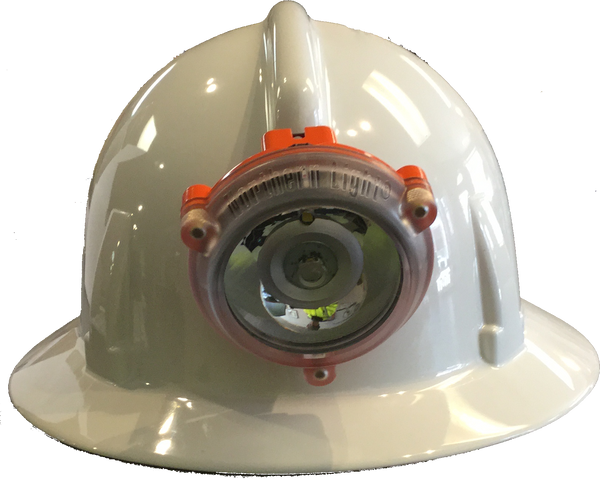

Northern Light NLA0M1 Polaris Cordless LED Cap Lamp

$ 288.75

The Polaris cap lamp is the ultimate cap lamp for underground mining and tunneling operations.  The Polaris cap lamp uses a high-capacity lithium ion battery and an LED light source that is protected in high-impact dust and water resistant plastic.  The cordless Polaris cap lamp is the first to be MSHA-approved.  It combines the battery and light sources in one enclosure, getting rid of the need for an external battery pack and cord.  Incorporating two light sources in addition to an emergency flashing beacon mode, the main light output ranges from a minimum of 5,000 LUX, to a typical 6,500 LUX. The Polaris battery is now field-replaceable by your authorized NLT distributor. Contact us for more information.
The Polaris lamp does NOT come with a charger, the charger can be found here https://ammcindustries.com/products/northern-light-cap-lamps-polaris-cap-lamp-charger

  • Battery Charge Time: < 12 hours
  • Battery Discharge Time: Main LED > 12 hours; Secondary LED > 40 hours
  • Emergency Flashing: Activated with 5-second hold down
  • Battery Life cycle: 500 minimum
  • Weight: 170 grams
  • LUX: minimum 5,000; typical 6.500
  • Charger Configuration: Single unit, 10-unit and 24-unit modules and 48-unit rack; 12 VDC adapter for vehicle connection
  • Charger Power Source: AC line voltage range from 120+/-10%, 220V +/-10%, 12 AC input can also be used in case of retrofit to existing racks and transformers
  • Charger Temperature Range:  5°C to 35°C (optimum 15°C to 20°C)
  • Lamp Storage Temperature:  0°C to 60°C (optimum 10°C to 20°C)
  • Primary LED Life: 20,000 hours
  • Secondary LED Life: 20,000 hours
  • Ingress Protection: IP 67
  • Operating Ambient Temperature:  Ta=0°C to 60°C
  • Charging Current: 300mA
  • Approvals (depending on version): Intrinsically Safe approved by ATEX, IECEx, MSHA, Class 1, Div1.
  • CHARGER NOT INCLUDED
